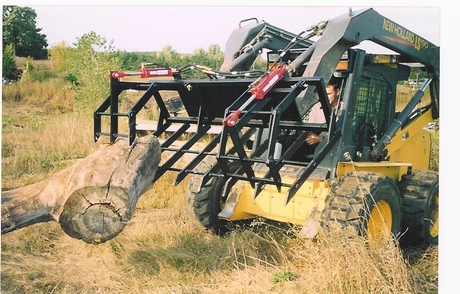

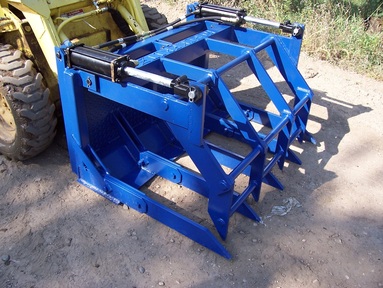

Welded Tine Grapple
Brush Clamp
For trees, brush and Light debris
3/4" x 2 1/2" high grade steel tines are welded to a heavy wall box tube frame with two 1" solid steel bars cut through all tines and dual welded to create an extremely strong grid shaped bottom. This grid transfers load from one tine to the next, and allows for our relatively light weight clamp to be extremely strong and durable.
Dual claw design includes two 2 1/2 x 8 hydraulic cylinders and 3/8np hydraulic lined to T blocks.
( lines from T block to your machine, and connectors Available for $150)
64" $1950 72" $2050 84" $2150
Heavy Duty Add $400
3/4" x 2 1/2" high grade steel tines are welded to a heavy wall box tube frame with two 1" solid steel bars cut through all tines and dual welded to create an extremely strong grid shaped bottom. This grid transfers load from one tine to the next, and allows for our relatively light weight clamp to be extremely strong and durable.
Dual claw design includes two 2 1/2 x 8 hydraulic cylinders and 3/8np hydraulic lined to T blocks.
( lines from T block to your machine, and connectors Available for $150)
64" $1950 72" $2050 84" $2150
Heavy Duty Add $400

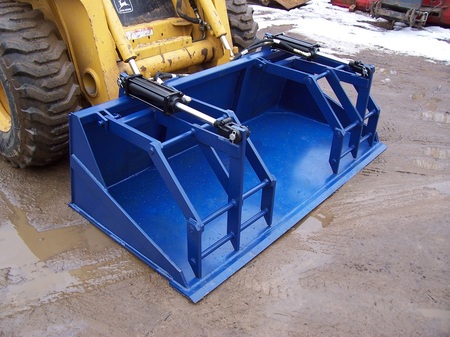

Solid Bottom Grapple Buckets
Made from 1/4 inch high grade steel,
Hardened weld-on carbide imbeded cutting edge.
Dual claw design includes 2 1/2 x 8 hydraulic cylinders, and 3/8np lines to T blocks.
Low slung sides allow for picking up of logs and long debris.
( lines from T block to your machine, and connectors Available for $150)
64" $1950
72" $2050
84" $2150
Heavy Duty AR400 demolition grade, Add $600
Bolt on dual side cutting edge add $350
Teeth Add $65 each

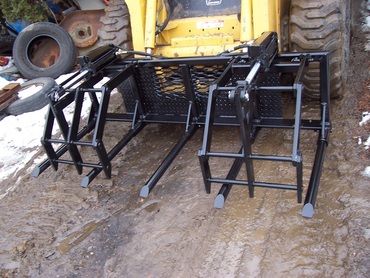

Removable Tine Grapple
2" round solid steel tines are bolted into a receiver pocket at the faceplate.
Great for use by employees or inexperienced operators who may damage equipment.
Tines can be added or removed to modify it to fit your needs.
( lines from T block to your machine, and connectors Available for $150)
64" 7 tine $1950
72" 9 tine $2050
84" 11 tine $2150
Heavy Duty Add $450
Stump and Rock Grapple
Great for grabbing Stumps and large rocks up to 36"
Extra heavy duty construction
Replaceable 1" x 4" solid steel tines
48" Wide 5 tine Grapples start at $3150
Custom widths and claw configurations available, call for Quote.
Many Sizes, Options and configurations available to fit any Brush removal, demolition or tree clearing need...
Koeckeritz Iron & Steel
Contact us by phone at 651-269-5688
Between noon and 10pm 7 days a week.
All prices subject to change without notice.
