Light Weight
Floating
Cross Draw Style
Snow Plows
For up to 35 HP machines
1/8 x 2 x 2 box tube frame
3/8 x 6 cutting edge
2 trip springs
Koeckeritz Iron & Steel Snow Plows are built as a floating faceplate design for use on Utility Tractors and Skid Loaders.
These plows use a 1-1/4 main pin that is 10 inches long and is Grease-able.
Due to the innovative backbone and pin design, these plows have substantial "walk" or side float movement in their blade, Ideal for uneven terrain and off road plowing.
These plows are very well built, and very durable, and are intended for the commercial contractor..
The cross draw design allows us to move the plow several inches closer to the face-plate, which greatly improves balance on many machines.
These plows INCLUDE a cross-over relief valve.
(Hydraulic lines and couplers Available for $150)
5, 5 1/2, 6 $2475
6 1/2 foot $2575
Manual Turn Available
Custom Faceplates Available
Add $150 for Lines and Couplers. Add $100 for shoes.
======================================================================================
Standard Duty
Floating
Cross Draw Style
Snow Plows
For up to 65 HP machines
3/16 x 2 x 2 box tube frame
3/8 x 6 cutting edge on plows under 6.5 ft,
1/2 x 6 cutting edge on larger plows
2 trip springs on small plows, 4 on large plows
Koeckeritz Iron & Steel Snow Plows are built as a floating faceplate design for use on Utility Tractors and Skid Loaders.
These plows use a 1-1/4 main pin that is 10 inches long and is Grease-able.
Due to the innovative backbone and pin design, these plows have substantial "walk" or side float movement in their blade, Ideal for uneven terrain and off road plowing.
These plows are very well built, and very durable, and are intended for the commercial contractor..
The cross draw design allows us to move the plow several inches closer to the face-plate, which greatly improves balance on many machines.
These plows INCLUDE a cross-over relief valve.
(Hydraulic lines and couplers Available for $150)
5, 5 1/2, 6 or 6 1/2 foot $2575
7 & 7 1/2' $2775
Manual Turn Available
Custom Faceplates Available
Add $150 for Lines and Couplers. Add $100 for shoes.
======================================================================================
Heavy Duty
Floating
Cross Draw Style
Snow Plows
For up to 85 HP machines
1/4 x 2 x 2 box tube frame
1/2 x 6 cutting edge on 5 ft to 8 ft plows
1/2 x 8 cutting edge on 8-1/2 and larger plows
2 trip springs on small plows, 4 on large plows
Koeckeritz Iron & Steel Snow Plows are built as a floating faceplate design for use on Utility Tractors and Skid Loaders.
These plows use a 1-1/4 main pin that is 10 inches long and is Grease-able.
Due to the innovative backbone and pin design, these plows have substantial "walk" or side float movement in their blade, Ideal for uneven terrain and off road plowing.
These plows are very well built, and very durable, and are intended for the commercial contractor..
The cross draw design allows us to move the plow several inches closer to the face-plate, which greatly improves balance on many machines.
These plows INCLUDE a cross-over relief valve.
(Hydraulic lines and couplers Available for $150)
5, 5 1/2, 6 $2775
6 1/2 foot $2875
7 & 7 1/2' $2975
8' $3075
8 1/2' $3375
9' $3475
9 1/2' $3575
10' $3775
Manual Turn Available
Custom Faceplates Available
Add $150 for Lines and Couplers. Add $100 for shoes.
======================================================================================
Super Duty / Industrial
Floating
Cross Draw Style
Snow Plows
For comercial contractors and large machines
1/4 x 2-1/2 x 2-1/2 box tube frame
1/2 x 8 and 5/8 x 8 cutting edges
4 trip springs on small plows
6 trip springs on large plows
Koeckeritz Iron & Steel Snow Plows are built as a floating faceplate design for use on Utility Tractors and Skid Loaders.
These plows use a 1-1/2 main pin that is 10 inches long and is Grease-able.
Due to the innovative backbone and pin design, these plows have substantial "walk" or side float movement in their blade, Ideal for uneven terrain and off road plowing.
These plows are very well built, and very durable, and are intended for the commercial contractor..
The cross draw design allows us to move the plow several inches closer to the face-plate, which greatly improves balance on many machines.
These plows INCLUDE a cross-over relief valve.
(Hydraulic lines and couplers Available for $150)
6 & 6 1/2 foot $3775
7 & 7 1/2' $3975
8' $4075
8 1/2' $4375
9' $4475
9 1/2' $4675
10' $4875
12 inch Wings add $875
Curb Blocks add $250
Add $150 for Lines and Couplers. Add $100 for shoes.
1/4 x 2-1/2 x 2-1/2 box tube frame
1/2 x 8 and 5/8 x 8 cutting edges
4 trip springs on small plows
6 trip springs on large plows
Koeckeritz Iron & Steel Snow Plows are built as a floating faceplate design for use on Utility Tractors and Skid Loaders.
These plows use a 1-1/2 main pin that is 10 inches long and is Grease-able.
Due to the innovative backbone and pin design, these plows have substantial "walk" or side float movement in their blade, Ideal for uneven terrain and off road plowing.
These plows are very well built, and very durable, and are intended for the commercial contractor..
The cross draw design allows us to move the plow several inches closer to the face-plate, which greatly improves balance on many machines.
These plows INCLUDE a cross-over relief valve.
(Hydraulic lines and couplers Available for $150)
6 & 6 1/2 foot $3775
7 & 7 1/2' $3975
8' $4075
8 1/2' $4375
9' $4475
9 1/2' $4675
10' $4875
12 inch Wings add $875
Curb Blocks add $250
Add $150 for Lines and Couplers. Add $100 for shoes.
Cross Draw Snow Plow Features
Double sided replaceable bolt on cutting edge.
1 Dual direction hydraulic culinder.
A hydraulic cross over relief valve.
Rolled Steel Skin with heavy Steel Backbones.
2 or 4 Trip Spring, Hinged Blade
Heavy duty Grease-able main pin.
|
|
|
|
|
|
|
|
|
A-Frame Style
Snow Plows
All our plows can be build in a light weight version for smaller machines.
Koeckeritz Iron & Steel Snow Plows are available as a floating faceplate design for use on Utility Tractors and tracked machines, or rigid mount design for use on rubber tired Skid Loaders.
These plows use a 1-1/4 main pin that is 12 inches long and is Grease-able.
These plows are very well built, and very durable.
(Hydraulic lines and couplers Available for $150)
5, 5 1/2, 6 & 6 1/2 foot $2175
7 & 7 1/2' $2375
8' $2475
8 1/2' $2675
9' $2975
9 1/2' $3075
10' $3275
Add $250 for floating Faceplate. Add $100 for shoes. Add $150 for cross over valve.
(We strongly recommend that you add a crossover relief valve to the hydraulics on this unit to relieve stress if you clip a curb. We can add it for you for an additional $150)
Koeckeritz Iron & Steel Snow Plows are available as a floating faceplate design for use on Utility Tractors and tracked machines, or rigid mount design for use on rubber tired Skid Loaders.
These plows use a 1-1/4 main pin that is 12 inches long and is Grease-able.
These plows are very well built, and very durable.
(Hydraulic lines and couplers Available for $150)
5, 5 1/2, 6 & 6 1/2 foot $2175
7 & 7 1/2' $2375
8' $2475
8 1/2' $2675
9' $2975
9 1/2' $3075
10' $3275
Add $250 for floating Faceplate. Add $100 for shoes. Add $150 for cross over valve.
(We strongly recommend that you add a crossover relief valve to the hydraulics on this unit to relieve stress if you clip a curb. We can add it for you for an additional $150)
A-Frame style Snow Plow Features
Double sided replaceable bolt on cutting edge.
2 turn rams.
Rolled Steel Skin with heavy Steel Backbones.
2 or 4 Trip Spring, Hinged Blade.
Heavy duty Grease-able main pin.

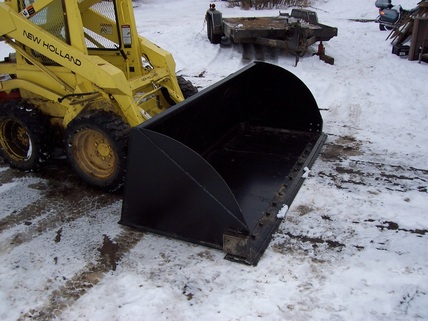

Snow Buckets
Large capacity buckets are great for snow, mulch and chipped tires.
High swept sides allow for maximum carrying capacity.
Welded on hardened steel cutting edge.
6' $1375
7' $1575 7 1/2' $1675
8' $1875 8 1/2' $2075
9' $2375
Bolt on double sided cutting edge, and curb wear blocks available for additional charge.
